Details

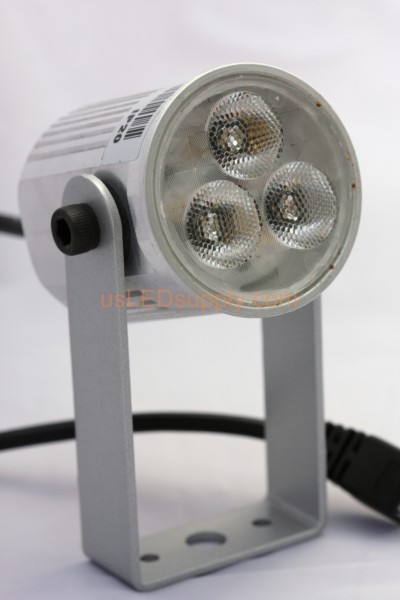

These are great RGB Puck Lights designed for architectural lighting.
They come with a bracket and can be easily directed.
This 9w version has 3x 3w LED lights (so you have 1x red 1x green 1x blue)
You will need to use a constant current driver for these as they are designed to be driven at no more than 350mA per color.
They can be connected to the driver using standard cat-5 wire with lengths of up to 100ft. They can also be connected together in series using our RJ-45 Splitters if you have more than one.
Electrical
Power Requirement: 12 - 48VDC depending on number of units connected in series (approximately 3-4v per LED)
Maximum Input Current: 350mA per LED
Source and Output
LEDs: 3 x 3W Led
Beam Angle: 25°
Luminous Flux (Lm): 122
Efficacy (Lm/W): 24
Life Time ®: Expected 20,000 hours life at full power 50,000 on color change
Driver
Compatible Driver: 350mA Constant Current Drivers or Amps
You can connect 1x unit on a 12v driver/power supply or 2x on a 24v driver/power supply
Signal Cable Connector: RJ-45
Exit Cable Length: 30cm (IP 20), 2m (IP 65)
Environment
Temperature Range: -10°C ~ 40°C
Housing
Weight: 1 kg
Dimension (mm): H69 x 50 Diameter
Color: Silver
Lens: Optical Grade PMMA
Material: First grade aluminum
IP Rating: IP 65,
Accessories: Hanging bracket
Listing
Certifications: CE / RoHS / WEEE
Additional Information
Led Color | RGB |
---|---|
Type of LED | 3x 3w leds (1 x 3W Red / 1 x 3W Green / 1 x 3W Blue) |
Viewing Angle (Degrees) | 25 deg |
Mounting Options | Wall Mount |
Waterproof Rating | Water Resistant IP-65 |
Voltage | 350mA |
Wattage | 9w (3w/Color) |
Power Input: Connection Type, Voltage, Amperage | RJ-45 Plug |
Max Connected Strip Length From Each Power Connection | You can connect 1x unit on a 12v driver/power supply or 2x on a 24v driver/power supply 3x 36v driver/power supply |
Dimmable Range / Steps | 0-100% via PWM |
Lumens | R-99 G-165 B-36 |
Product Size (L)x(W)x(H) | (H) 69mm x (Diameter) 50mm |
Suggested Accessories | RJ-45 Splitter (for connecting multiple units) RJ-45 Coupling for connecting unit to cat-5 cable 350mA AMP, DMX Decoder, Power Driver |
Available Options | IP-20 IP-65, Replacement Leds |
