Details
This is our simplest controller for digital strips and modules

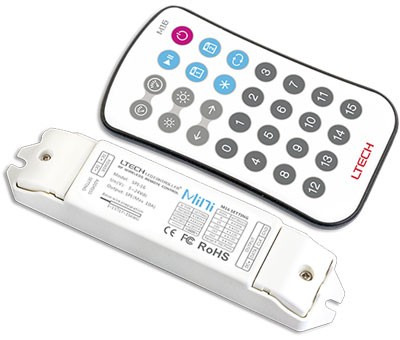

SPI-16 is a Mini fantastic controller with RF remote M16, which can be control all the led lights with IC drivers; Compact and powerful, but not simple, built-in multi-changing effects, you can also customize the two kinds of scene modes to bring you fantastic color! By RF remote controls you can select from a variety of dynamic lighting effects, set the control pixels quantity, adjust the changing speed and brightness, change the change direction, adjust the RGB sequence, select the IC type, storage, play customize scenarios etc.
You can also change the RGB order so if your strips use a different order like GRB you can correct it
Specifications:
Input signal | RF Remote |
Input power | DC5V~DC24V |
Decoder channels | 8-360 RGB Pixels/unit |
Compatible IC | TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TM1803, TLS3001, TLS3002, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, WS2811, WS2812B, P9813 |
Dimming range | 50~100% |
Working Temperature | -30℃~55℃ |
Product Dimensions | L104×W58×H9mm |
Weight(G.W) | 42g |
Additional Information
Suggested Uses |
Theaters |
---|---|
Product Highlights | Includes Wall Bracket for Remote< br / You Can Learn Remote ID to Receiver so you can use several in the same area |
Led Color | RGB |
Mounting Options | Wall Mount, Other |
Voltage | 5v-24v |
Wattage | Less than 1w |
Number Of Chanels | up to 360 RGB Pixels |
Connections Input/Output |
Output Connections (To Strips) |
Power Input: Connection Type, Voltage, Amperage | (Screw Terminal) DC5V-DC24V (+)/(-) |
Output Connection Type | (Screw Terminals) |
Controllable By | RF Remote (can go through walls) medium range (large room and 2x wall) 150ft Open Air |
RF Frequency | 433.92MHz |
Number Of Control Modes | 16 |
Dimmable Range / Steps | Aprox 50-100% |
Weight / Item | 0.40lb |
Product Size (L)x(W)x(H) | Receiver L 5.32" x W 1.19" x H 0.8" (L135×W30×H21mm) Remote L 4.13" x W 3.32" x H 0.4" (L105×W59×H9mm) |
Suggested Accessories | Male Barrel Connector for easy connection to our Power Supplies |
Warranty | 2 Years |
