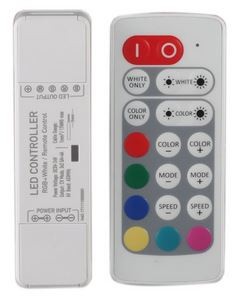

RGB Remote Control RF 3x2.5A + 1x4A (Micro RGB+W)

Be the first to review this product

Availability: In stock

Regular Price: $35.00

Sale Price $30.00


Quick Overview

RGB Remote Control (Micro RGB)

SKU# 610563075126

RGB Remote Control RF 2.5A+4A (Micro RGB+W)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • RGB Remote Control RF 2.5A+4A (Micro RGB+W)
  • RGB Remote Control RF 2.5A+4A (Micro RGB+W)
  • RGB Remote Control RF 2.5A+4A (Micro RGB+W)
  • RGB Remote Control RF 2.5A+4A (Micro RGB+W)


Micro RGB+W LED controller is perfect for places you don't have room to hide a large receiver or just want a small easy to use controller

magnetic backed remote with self adhesive plate

Allows White Only or White and RGB or RGB Only Control

Voltage range of DC5-24V.

Additional Information

Suggested Uses

Great for



Motor Cycles

Crown Molding


TV-Theater Rooms

Product Highlights

Super small easy to hide,

Fades On and Off for a nice effect,

Fades when you change colors for a nice effect,

RGB and W for areas you want better whites

Led Color RGB
Mounting Options Wall Mount
Voltage 5v-24v
Wattage 3x 30w (RGB) 1x 48w (White)
Power Usage in Off or Standby State Less than 1W
Power Rating Max Amps 3x 2.5A/Ch (RGB) 1x 4A (White)
Output Power 12A 192 Watts Total all channels
Number Of Chanels 4
Rated Amps / Ch 3x 2.5A/Ch (RGB) 1x 4A (White)
Recommended Power Supply Size 1-12A (12-144 Watt)
Connections Input/Output

in/out Screw Terminals for connecting to 5-24v DC

RF Receiver: built in

Output: Has Screw Terminals for connecting to our RGB Flex Strips.


Note: Ensure short circuit can not occur between connecting wire before you turn on the power

Power Input: Connection Type, Voltage, Amperage Screw Terminal
Output Connection Type Screw Terminal
Can Power/Control (xx) Feet of strip Can control 40' of our 12V Standard Output RGB Flex Strip and 24ft of Standard Output White
Controllable By RF Remote (can go through walls) medium range (large room and 1x wall) 45ft Open Air
RF Frequency 433.92MHz
Number Of Control Modes 20 Buttons 42 mode
Steps of Speed Adjustment 10
Dimmable Range / Steps dimming control 4 steps quick 15x steps fine
Weight / Item .12lb
Product Size (L)x(W)x(H) (Receiver L87ΧW24ΧH15 mm) (Remote L87ΧW37ΧH8mm)
Comes With Receiver, Small Screw Driver, Remote Control and battery
Suggested Accessories

Can be used with amplifiers to control more than 4x reels (20 meters) of RGB flex strip

Remote Battery Type:  CR2032 Battery)

Available Options (may not be in stock) 6A/ch
Available Options RGB
