Details

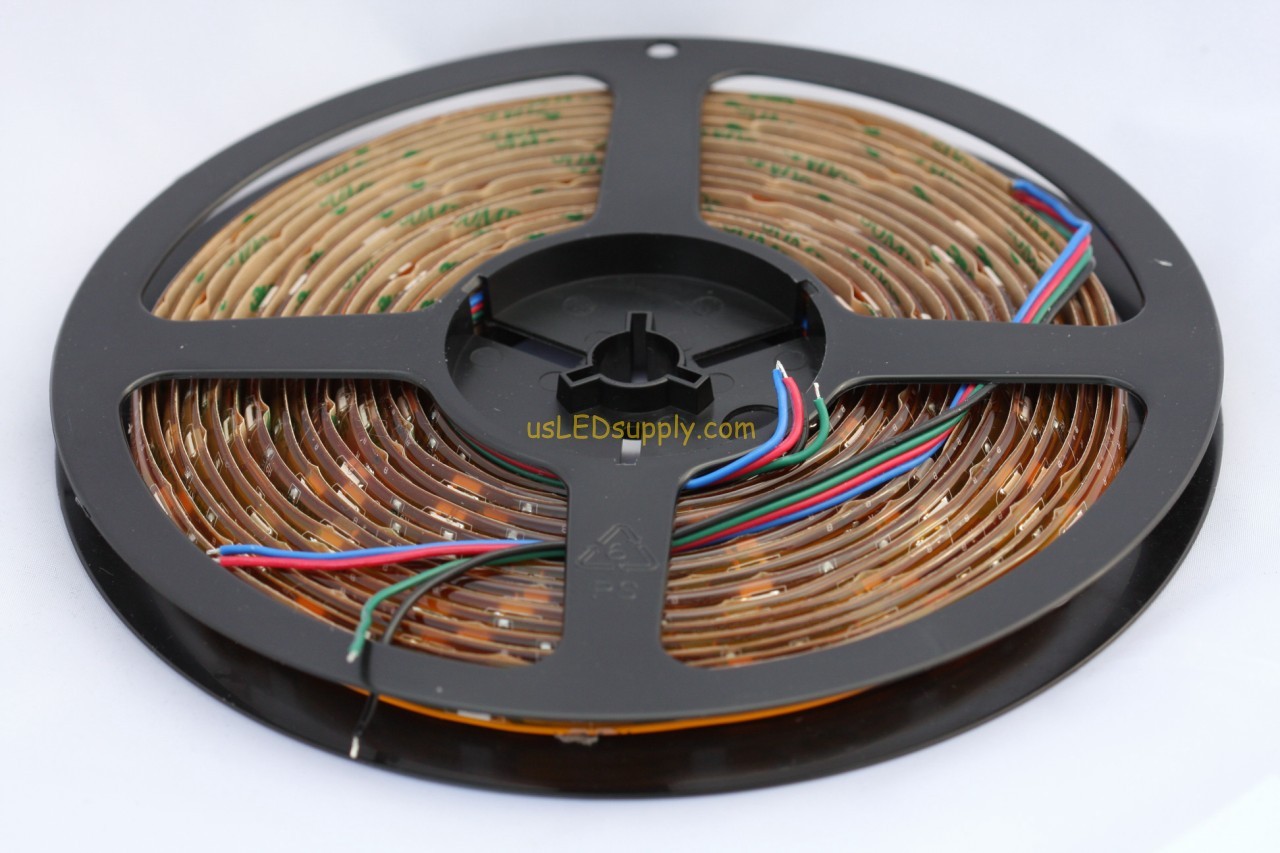

RGB Flexible LED Strip
These color changing LED strips are very flexible, bright, and easy to install! They are much brighter and longer-lasting than traditional rope light.
Each roll of flexible LED strip is 16' long (5 meters or actually 16'-5" with 6" wire on each end). The LED type used are the 5060 type super bright 3 in 1 SMD LEDs. There are 300 per 16' roll. They run on 24V DC. These strips do not have any waterproof coating, so they are not water resistant. However, this is preferred in applications where you will be cutting the LED strip frequently (because you do not have to peel off the waterproof coating on each end before reconnecting/soldering). ~ they are very easy to work with!
Details / Options
~~These RGB strips can change any color with the use of a controller (please look through our RGB Remote Controllers and DMX Controllers). For these RGB Strips,
~~The advantage of these 24V flexible LED strips are the possibility to connect more together (and thus have longer power runs without using larger power wires). This makes them ideal for commercial lighting (restaurants, bars, night clubs, theater, store front, etc.).
~~They can be dimmed 0-100% which is a feature on most of our RGB controllers.
~~For $1.50 we can pre-solder a non waterproof power connector on one end which you can just plug in to one of our power supplies.
~~The 24v 48 watt Power Supply (can control up to 12' of flexible LED strip) ~ these numbers are based on the rated power draw~ you may be able to get longer runs than this on a power supply but we can not guarantee it). When using these 24V strips, you must also use an 12/24v amplifier if you want to use the standard 12v controllers to control them.
~~When considering power supply sizing, remember that you will need a 24V power supply that can output approximately 3A for each roll.
~~If you need help designing your lighting or are not sure how to wire, please check out our How to Install section. If your questions are not answered there, please contact us we would be glad to help!
Additional Information
Suggested Uses | With the 24v strips you can connect more strips together between power connections and have longer power runs without using larger power supply wires These Flexible Strips Are Great For |
---|---|
Led Color | RGB |
Length Of Strip | 5 Meters/Reel 16'-4" long rolls with 6" wire on each end |
Cuttable Every | 100mm (3.96") |
# of LEDs / Meter | 60 |
# of LEDs / Reel | 300 |
Type of LED | Super Bright 3 in 1 RGB 5060 SMD |
Viewing Angle (Degrees) | 120 deg |
Mounting Options | "3M Peel and Stick" Backing on Strips, Ceiling Mount, Wall Mount |
Waterproof Rating | none |
Voltage | 24v |
Wattage | 64 |
Power Usage Watts / Foot: Rated (Actual) | 4 |
Power Rating Max Amps | 3A 1A/Color |
Power Rating Max Watts | 64W 24W/Color |
Max Connected Strip Length From Each Power Connection | At full brightness (white) we recommend you only connect 2 rolls end to end from each power connection. |
Controllable By | Any of our 24v RGB Controllers or 12v Controllers with a 24v Amplifier or Manually With Toggle Switches (one per color) |
Dimmable Range / Steps | 0-100% via PWM |
Wire Color Code Chart | (Black = + 24v) (Green = Green -) (Red = Red -) (Blue = Blue -) |
Strip Backing Color | White or Gold |
Lumens | Approx 1400 Lumens / Roll or 90 / Ft |
Weight / Item | .5 lb |
Strip Width | +/- .4" (11mm) |
Available Options (may not be in stock) | Waterproof: IP-65 IP-66 IP-67 IP-68 12v or 24v |
