Details

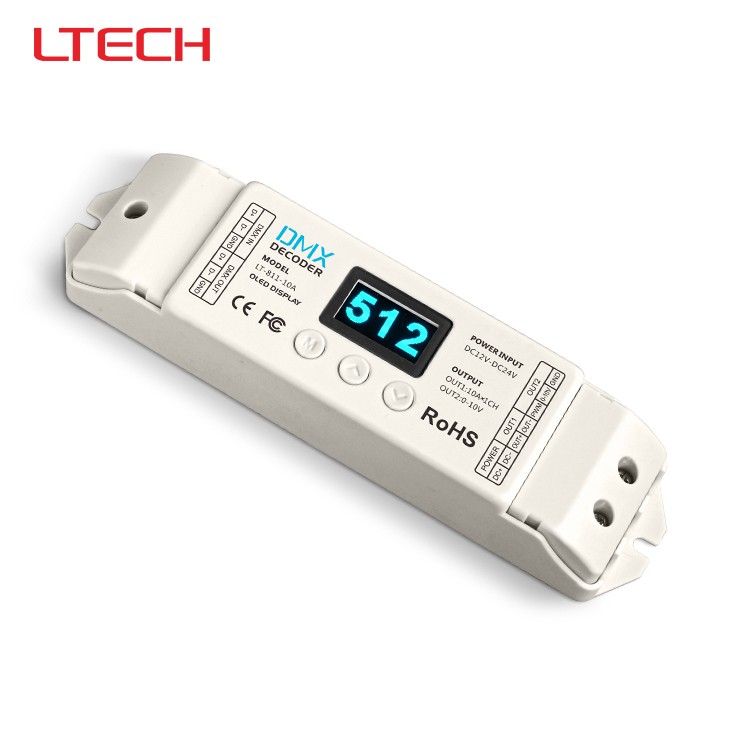

This is our newest Model with OLED Display
Supporting 16 bit/8 bit intput, 3 dimming curve options with Frame rate is as high as 850 frames per second.
Built-in protection circuit, resistant to lightning strikes and ESD static electricity.
Specifications:
1.) Input Power:DC12V-DC24V
2.) Output Current:10A ×1CH + 0-10V ×1CH + 10V PWM ×1CH
3.) Output Power:120W/240W/(12V/24V)
4.) Brightness Control :256 scales 16bit/CH
5.) DMX Address:4 channels
6.) DMX512 Standard:DMX512/1990
6.) Working Temperature: -30℃ ~ 55℃
7.) Product Dimension:L175×W44×H30(mm)
8.) Casing Size: L178×W48×H33mm
9.) Weight:0.34lb
Additional Information
Suggested Uses |
Theaters |
---|---|
Product Highlights |
|
Led Color | N/A |
Mounting Options | Wall Mount, Other |
Voltage | 12/24v |
Wattage | 10A x1CH Max 10A |
Power Rating Max Watts | 120W (12v) 240W(24V) |
Number Of Chanels | 1 |
Rated Amps / Ch | 10A/Ch |
Recommended Power Supply Size | 12-240 Watt / 1-20 Amp Depending on connected strip length |
Connections Input/Output |
DMX Connections (Screw Terminals)
Output Connections (To Strips) |
Power Input: Connection Type, Voltage, Amperage | (Screw Terminal) DC12V-DC24V (+)/(-) note for 12v strips use 12v input |
Output Connection Type | (Screw Terminals) |
Can Power/Control (xx) Feet of strip | Up to 60' of Standard 12v Single Color Flex Strip or 10A/Ch |
Controllable By | DMX |
Number Of Control Modes | Full Control with DMX |
Steps of Speed Adjustment | Full Control with DMX |
Dimmable Range / Steps | 0-100% via DMX |
Weight / Item | 0.33lb |
Product Size (L)x(W)x(H) | L 6.88" x W 1.73" x H 1.18" L175×W44×H30(mm) |
Suggested Accessories | Female Barrel Connector for easy connection to our Power Supplies under 100 watts |
Available Options (may not be in stock) | 12A Model |
