RGB DMX Decoder 5A/Ch DMX Decoder With Display (4x Channel)

Be the first to review this product

Availability: In stock

Regular Price: $75.00

Sale Price $68.00

Qty:

| Add to Compare

Quick Overview

LT-820-5A 4CH CV DMX Decoder with LCD (SKU# 610563075027)

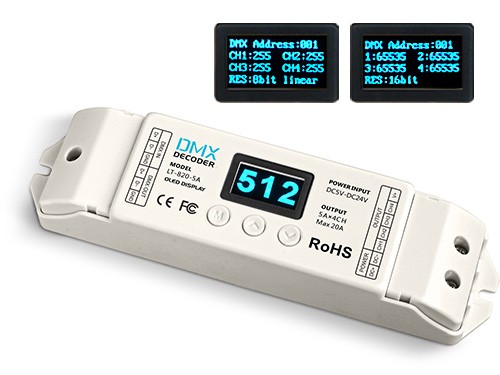

RGB DMX Decoder 5A/Ch DMX Decoder With Display (4x Channel)

Double click on above image to view full picture

More Views

Details

This is our newest Model with OLED Display

Supporting 16 bit/8 bit intput, 3 dimming curve options.

Built-in protection circuit, resistant to lightning strikes and ESD static electricity.

Specifications:
1.) Input Power：DC5V-DC24V
2.) Output Current：5A per channel（total current: 20A）
3.) Output Power：100W (5v) 240W(12V) 480W(24V)
4.) Brightness Control ：256 scales 16bit/CH
5.) DMX Address：4 channels
6.) DMX512 Standard：DMX512/1990
6.) Working Temperature: -30℃ ～ 55℃
7.) Product Dimension：L L175×W44×H30)（mm）
8.) Casing Size： L178×W48×H33mm
9.) Weight：0.27lb

Additional Information

Suggested Uses	Theaters Night Clubs Party Busses Stages Churches DJ Booths Partys Home Automation Bands
Product Highlights	Supporting 16 bit/8 bit intput, 3 dimming curve options. Built-in protection circuit, resistant to lightning strikes and ESD static electricity. Built-in LCD screen, so its easy to set the DMX address.
Led Color	RGB
Mounting Options	Wall Mount, Other
Voltage	5v-24v
Wattage	5A x4CH Max 20A
Power Rating Max Watts	100W (5v) 240W(12V) 480W(24V)
Number Of Chanels	4
Rated Amps / Ch	5A/Ch
Recommended Power Supply Size	12-240 Watt / 1-20 Amp Depending on connected strip length
Connections Input/Output	DMX Connections (Screw Terminals) 1x DMX Input 1x DMX Output Output Connections (To Strips) Ch 1 = Red (red wire) Ch 2 = Green (green wire) Ch 3 = Blue (blue or white wire) Ch 4 = White (black if using separate white strip) V+ = DC + (black wire)
Power Input: Connection Type, Voltage, Amperage	(Screw Terminal) DC5V-DC24V (+)/(-) note for 12v strips use 12v input
Output Connection Type	(Screw Terminals)
Can Power/Control (xx) Feet of strip	Up to 96' of Standard 12v RGB Flex Strip or 5A/Ch
Controllable By	DMX
Number Of Control Modes	Full Control with DMX
Manual	http://www.usledsupply.com/LED/Images/Manuals/lt-820-5a-cv-dmx-decorder.pdf
Steps of Speed Adjustment	Full Control with DMX
Dimmable Range / Steps	0-100% via DMX
Weight / Item	0.27lb
Product Size (L)x(W)x(H)	L 6.88" x W 1.73" x H 1.18" L175×W44×H30)（mm）
Suggested Accessories	Female Barrel Connector for easy connection to our Power Supplies under 100 watts Control Cable for connecting to distant Flex Strips
