Details

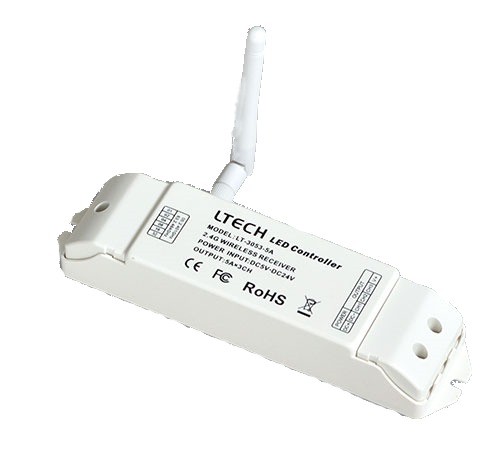

This Wireless RGB Receiver receives RGB (3ch PWM) data without wires up to 1000ft away from a Transmitter on the same channel. (Supports point to point or point to multi-point), (just set the transmitter and one or more receivers to the same channel).
The product is great for large buildings or building to building use where it is troublesome to run wires. it is also great where you have several buildings, across roads, river banks and bridges or just across a room where it is too hard to run a wire. Wirelessly connect devices you want to be in sync but cant get wires between. Data is sent in real-time and is reliable.
The product uses the 2.4GHZ RF global open ISM frequency.
Pick between 64 channels so you can run up to 64 separate groups in the same area without interference.
Use the relay Settings if need further increase the communication distance.
- ● Uses 2.4GHZ RF global open ISM frequency, which is worldwide and license free.
- ●Connect to our RGB or single color strips and modules and control them in sync and remotely with a controller connected to the transmitter.
- ● Supports point to point or point to multi-point use, (just set the transmitter and one or more receivers to the same channel).
- ● Choose between 64 interdependent channels so you can run up to 64 separate groups in the same area without interference.
Input voltage | DC5V-DC24V |
Output signal | 5A ×3CH Max 15A |
Maximum output power | 5v 75W / 12v 180W / 24v 360W |
Receiver sensitivity | -96dBm |
Working frequency | 2.4GHz ISM 64 channels |
Communication distance | up to 350m (line of sight) |
Working temperature | -20℃~55℃ |
Dimension | L175×W44×H30mm |
Package Size | L178×W48×H33mm |
Weight (G.W) | 110g |
Note: You will need a Transmitter to use this.
Additional Information
Suggested Uses | The product is great for large buildings or building to building use where it is troublesome to run wires. it is also great where you have several buildings, across roads, river banks and bridges or just across a room where it is too hard to run a wire. Wirelessly connect devices you want to be in sync but cant get wires between. Data is sent in real-time and is reliable. |
---|---|
Product Highlights | ● Uses 2.4GHZ RF global open ISM frequency, which is worldwide and license free. ●Connect to our RGB or single color strips and modules and control them in sync and remotely with a controller connected to the transmitter. ● Supports point to point or point to multi-point use, (just set the transmitter and one or more receivers to the same channel). ● Choose between 64 interdependent channels so you can run up to 64 separate groups in the same area without interference. |
Led Color | N/A |
Mounting Options | Ceiling Mount, Wall Mount |
Voltage | 5v-24v |
Wattage | +/- 1 Watt + Connected Load |
Power Rating Max Amps | 5A ×3CH Max 15A |
Power Rating Max Watts | 5v 75W / 12v 180W / 24v 360W |
Number Of Chanels | 64 Chanels |
Recommended Power Supply Size |
5v 75W |
Power Input: Connection Type, Voltage, Amperage | Screw Terminal (DC+) (DC-) |
Output Connection Type | Screw Terminal PWM x3CH |
Can Power/Control (xx) Feet of strip | can connect up to 80' of our 12v standard output Flex-Strip |
Controllable By | Wireless Transmitter |
RF Frequency | 2.401 - 2.464 GHz Frequency Range With Dip Switch Channel Selection |
Product Size (L)x(W)x(H) | L 175 × W 44 × H 30 mm |
Comes With | Screw on antenna |
